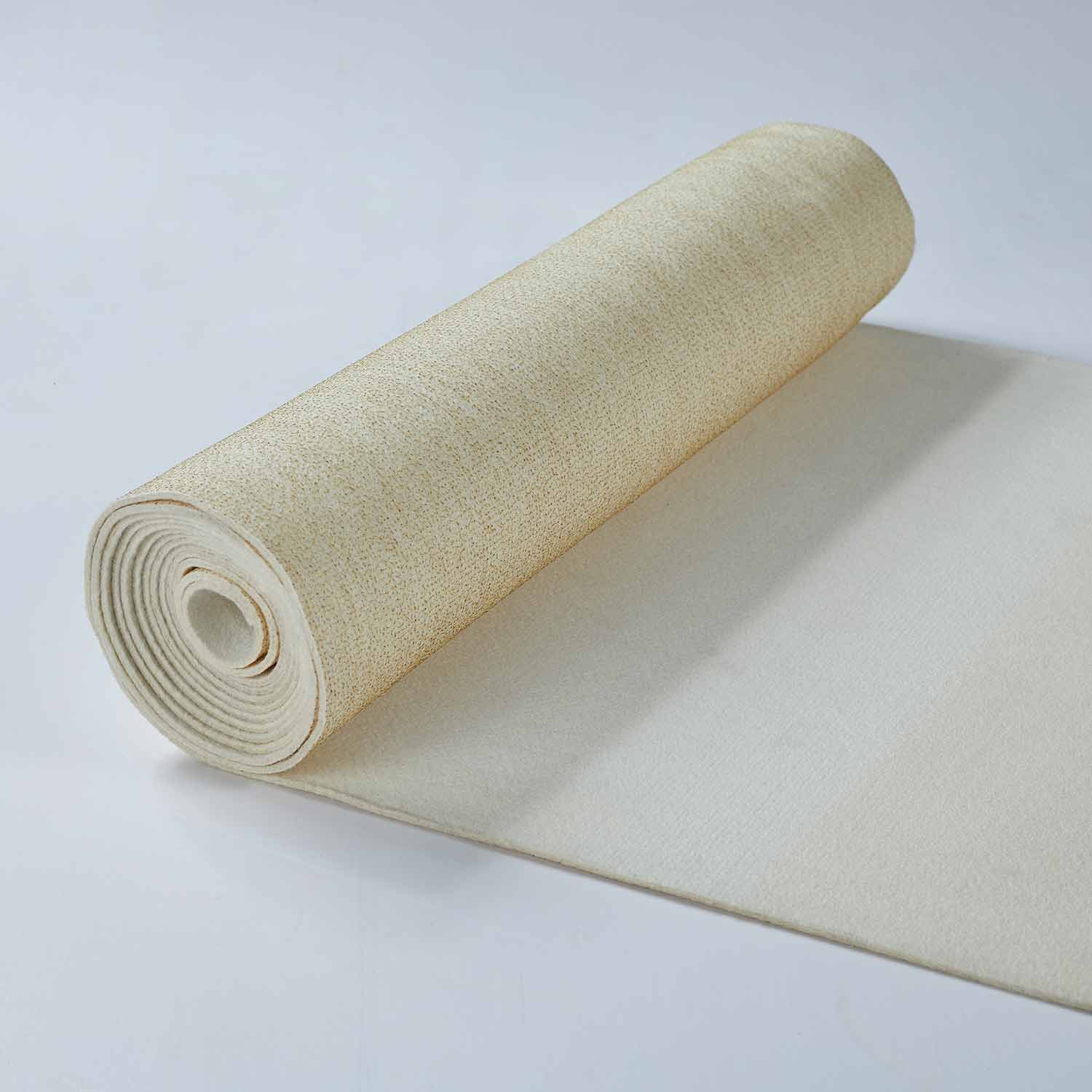

Nomex needle felt
Nomex needle felt 2
particular

Nomex needle filter bag

In the field of bag type dust, usually the heart bag compared to equipment, bag type dust collector can handle the dusty gas is mainly decided to chemical fiber fabric bags manufacturing conditions, general conditions of temperature, only need to bag can withstand temperature of 130°C. Such conditions with polyester at room temperature (needle felt, 729,208. acrylic) as the main body of the filter has basically can adapt to the situation, and for the relatively high temperature of flue gas industry needs to withstand high temperature chemical fibers are used to make filter which can fully meet the 150 to 250°C high temperature working conditions, MetaMax fiber due to the aromatic polyamide fiber, which has good heat resistance, abrasion resistance, folding, the folding properties is glass fiber can not be replaced.Technical parameter

Product Description

Technical parameter

Name     Nomex needle filter bag
Raw material     Aramid fiber/aromatic Guanji cloth/PTFE fiber fabric
Weight     500g/㎡
Air permeability     150-250L/M 2 ·s@200Pa
Radial pull     800N/5x20cm
Weft Tensile Strength     1000N/5x20cm
Radial elongation     <20%
Weft elongation     <50%
Use temperature     ≤ 204° C,Instant 230°C
Filtration velocity     1.0-1.2m/min
Post processing method     Singeing, calendering,PTEE impregnation or water-repellent and oil-repellent treatment
