Usually industrial dust concentration reaches a certain level (that is, the explosion limit), such as the case of electrostatic discharge sparks or other factors such as the ignition point, it is very easy to cause explosion and fire. Such as: flour dust, chemical dust, dust, etc.. In case of electrostatic discharge, there is an explosion. In the field of bag type dust, such as with the bag to collect the dust, it is required to manufacture the bag itself with anti- static function, production of anti electrostatic filter in addition to have the production of ordinary needle felt process, also called incorporated into conductive fiber yarn in the fabric warp yarn production needle felt.
Technical parameter

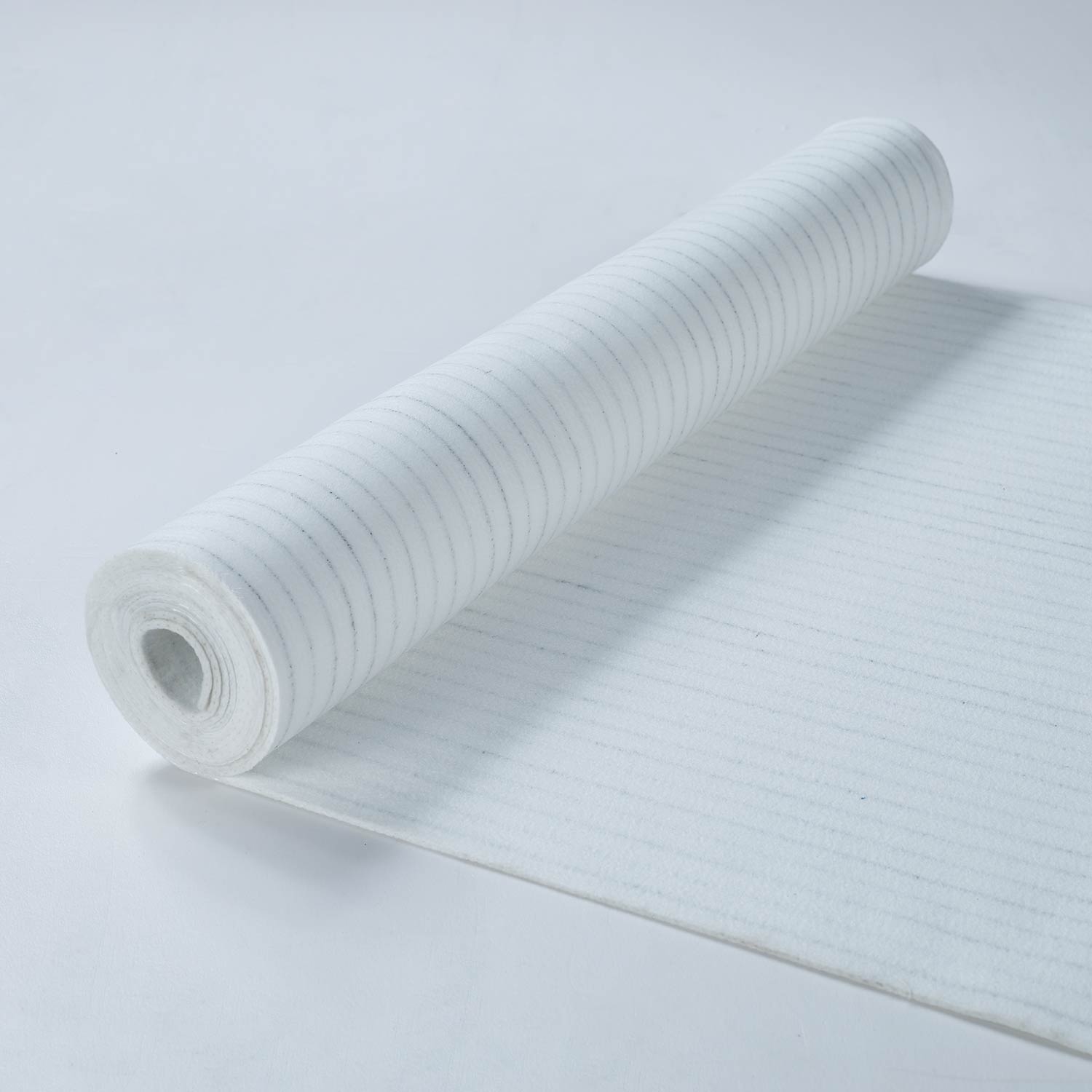

Name | Anti static polyester needle filter bag |
Raw material | Polyester fiber / polyester conductive fabric |
Weight | 450 – 600g/㎡ |
Air permeability | 200 – 300L/㎡ ·s@200Pa |
Radial pull | 800 – 1200N/5x20cm |
Weft Tensile Strength | 1000 – 1600N/5x20cm |
Radial elongation | <35% |
Weft elongation | <55% |
Resistance Surface | 4.8 |
YX1O Volume | 8.7 |
Frictional potential Maximum value | 250 |
V Mean value | 183 |
me/㎡ | 3.4 |
Use temperature | ≤ 130° C |
Filtration velocity | 1.0-1.2m/min |
Post processing method | Singeing, calendering,heat setting |
